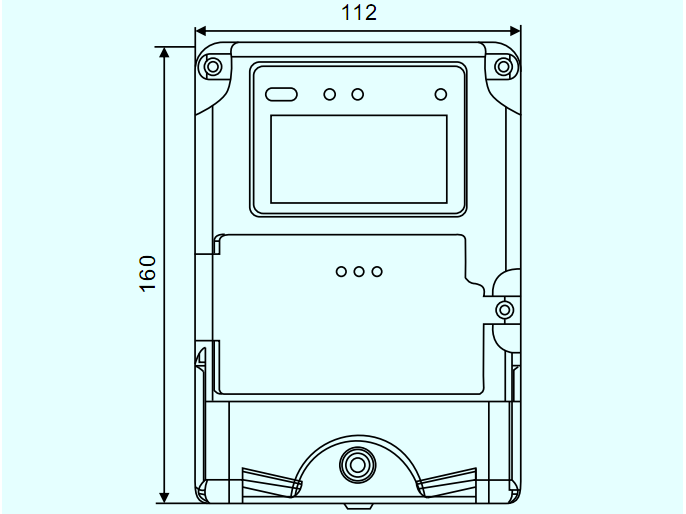

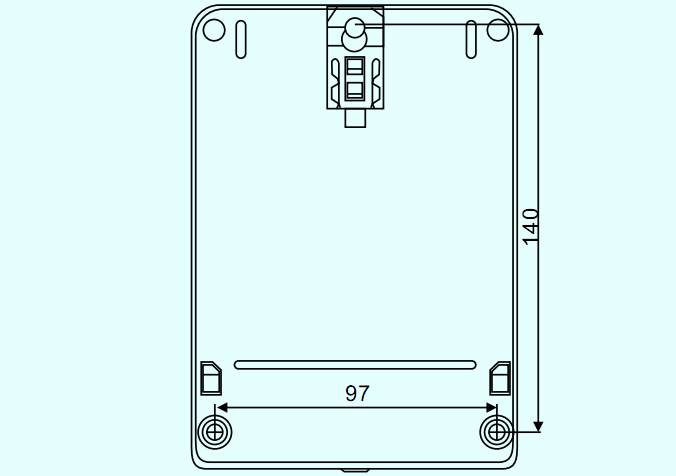

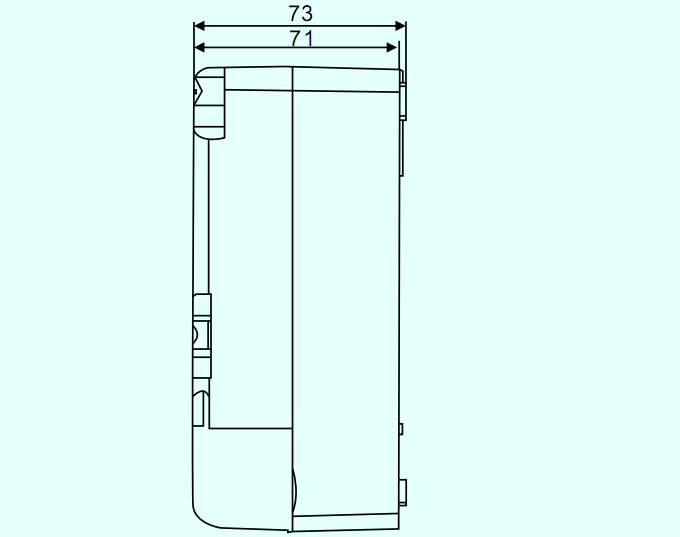

◈Overall and installation dimension

|
▷Product Overview
DJGL33-LTD 1 type concentrator is sky high-tech companies to adapt to the requirements of modern DSM, incorporated in the power industry for many years of design, development and operating experience on-site, based on embedded software and hardware development platform designed a new generation of electricity management means. Using microelectronic technology, computer chip technology, modern communications technology, today's most advanced technology to support downstream three-way 485, support GPRS / CDMA and other public wireless communication network technology.With the master system with the use, automatic meter reading, for power users load monitoring and control, prepaid management, power quality management, anti-tampering, abnormal alarm and other functions, is the power of marketing automation systems with higher utility value means products.
|
▷Features
● 32-bit high-speed controller based on ARM core, use 64M (bit) mass storage.
● High-speed full-duplex communication channel industrial-grade GPRS / CDMA module that supports TCP / UDP / SMS wireless network communication.
● Wireless communication module using a modular design, support with electric plug. Communication module replacement without any manual settings, the terminal can automatically identify the type of wireless MODEM and automatic on-line.
● Supported upstream communications protocol: Q / GDW376.1-2009 "power user information collection system technical specifications: master and collection terminal communications protocol"
● Communication protocol support and meter: DL / T645-1997 (ministerial statute), DL / T645-2007 (ministerial statute) and filing. Automatic identification meter baud 1200,2400bps.
● Support local / remote software online upgrade, support local / remote modification means for measuring point parameters and copy reading means for measuring point data.
● Excellent electromagnetic compatibility, can withstand high voltage spikes, strong magnetic field, strong static electricity, lightning surge interference, and has a strong adaptive ability temperature range.
● In case of loss of AC power, the device is capable of holding data and maintain clock chip work. Low power consumption. In the non-communication state, the device consumes apparent power ≤5VA, active ≤3W.
● Sealed design, PVC waterproof fire-retardant materials, wall structure, lightweight, easy to install.
|
▷The main technical parameter
|
Voltage
|
220V
|
|
Rated frequency
|
50Hz
|
|
Operating temperature
|
-40 ～ +70 ? (Optional)
|
|
Voltage Range
|
±20%
|
|
Machine static power
|
≤3W
|
|
MTBF
|
≥7.6×10 h
|
|
Design life
|
15 years
|
|
Clock battery (lithium battery)
|
1200 mAh
|
|
Power data and clock to keep time
|
≥10 years
|
|
Hardware interface
|
RS485 ports: 3-way
|
|
Maintenance RS485 interface: 1 channel
|
|
GPRS / CDMA communication port: 1 channel
|
|
Infrared interface: 1 channel
|
|
Ethernet port: 1 channel
|
|
Display: LCD dot matrix display
|
|
