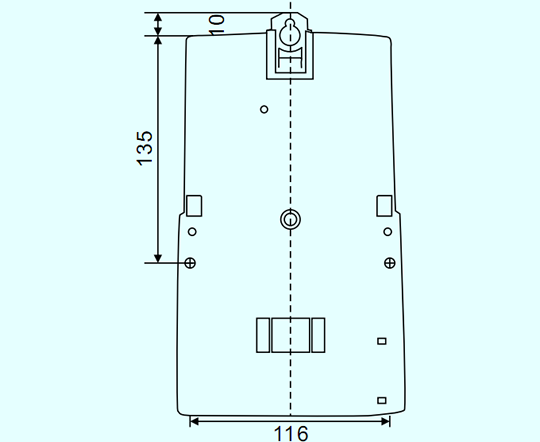

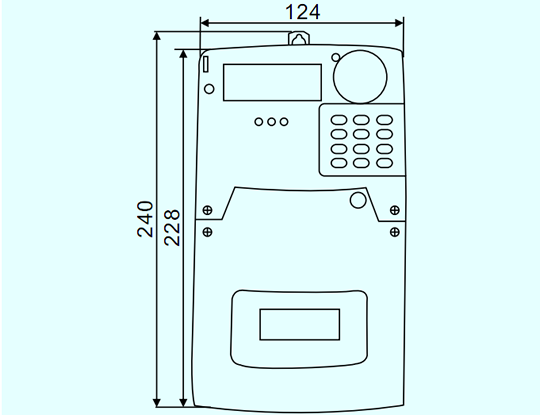

◈Overall and installation dimension

|
▷Product Overview
DDSY8888S single phase PLC wireless spl it keypad meter has many communication ways l ike infrared, RS485,PLC and RF. The meter has PLC
module to support remote reading, remote parameter setting and other functions.
The meter supports multi-tariff function, battery changeable at the bottom.
|
▷Features
● Meter cut off power in terms of 0 credit, and recover power when new credit is
entered.
● Real time display terminal cover and upper cover condition, cut off power in
abnormal condition- Double relay to prevent tamper.
● Smart load control.
● Infrared communication & RS 485 communication.
● Measure normal ly in reversal condition.
● Magnetic and bypass detection and recording.
● Sound and visual warning.
● Low credit prewarning function, user can set the value themselves according
to need by entering a short code .
● Overdraft function.
● Battery replaceable outside.
● PLC, RF or module can be put in for remote control.
|
▷The main technical parameter
|
Operating Voltage
|
230V(220/240V)
|
|
Voltage Range
|
70-130% Un
|
|
Basic Current(Ib)
|
5A
|
|
Max Current
|
80A
|
|
Rated Frequency
|
50/60Hz(±5%)
|
|
Accuracy
|
Active Class1
|
|
IP Class
|
IP 54 by IEC 60529
|
|
Meter Constant
|
1600imp/kWh/1000imp/kWh
|
|
Start Current
|
0.004Ib
|
|
Power Consumption
|
Voltage Circuit ≤1W 1.2VA Current Circuit ≤0.2 VA
|
|
Display
|
LCD: 6 integers+ 2 decimals ( or customer define );
|
|
Communication
|
RS485 /IR/PLC
|
|
Dimension
|
182×124×57.5 mm
|
|
Service Life
|
≥10years
|
|
