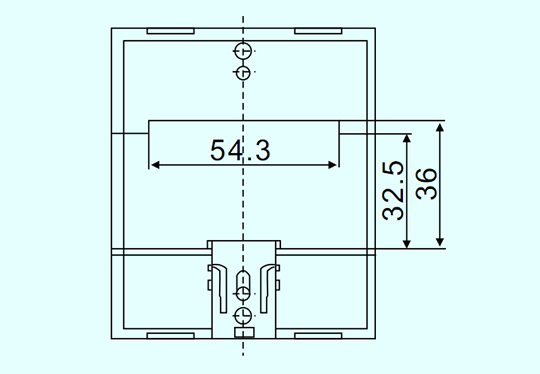

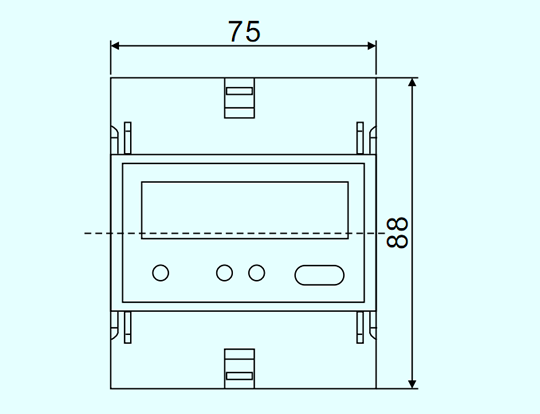

◈Overall and installation dimension

|
▷Product Overview
The single-phase electronic energy meter used advanced microelectronic technology and SMT manufacturing process of products, the products are used
in rated frequency 50Hz (optional 60Hz) single-phase AC active energy
measurement. The LCD display used in the table. With the measurement of high
precision, high sensitivity, rel iable performance, load width, low power
consumption, smal l size, light weight, simple operation, easy to instal l and so on.
The products meet the IEC 62053-21,IEC 62052-11 standard for electronic
energy meter of the relevant technical requirements.
|
▷Features
● Has a positive and negative sides to the measurement function, and the
accumulated energy in the same direction, that is included in the reverse
power forward.
●Power display with 7 digits, in which five integer digits, two decimal places; it
can be six integer digits, one decimal place; unit kWh, recording cumulative
total active power consumption .
● When the power meter device communicate with the outside world by the
communication indicator l ight, said the state energy meter in communication.
● Has the passive-isolated pulse output energy, pulse-output square wave,
pulse width of not less than 80ms ± 20%.
● Parametric programming (RS485 or infrared programming, setting, meter
reading) can be set to meter the table number (address), active energy start
reading passwords.
● With a reverse direction feature: When the current is reversed, reverse
indicator l ight.
|
▷The main technical parameter
|
Rated Current
|
5(20)A、5(30)A、10(40)A、15(60)A、15(100)A
|
|
Rated voltage
|
220V、230V
|
|
Rated frequency
|
50Hz、60Hz
|
|
Accuracy Class
|
Class 1.0、Class 2.0
|
|
Communication
|
RS485
|
|
