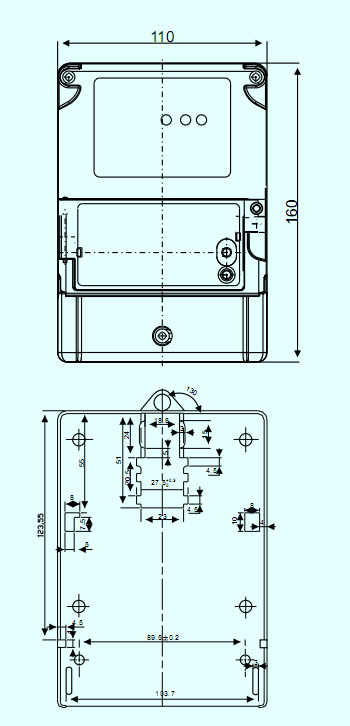

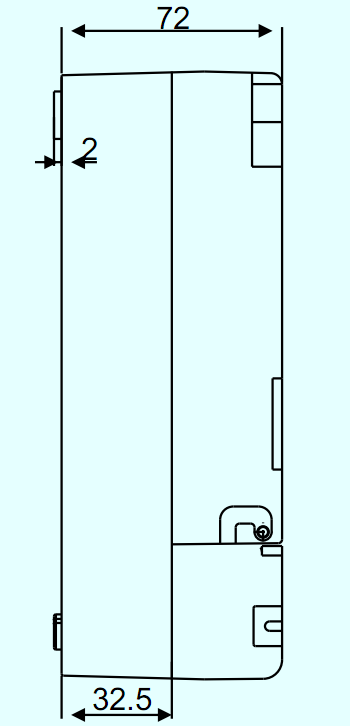

◈Overall and installation dimension

|
▷Product Overview
This Single phase electronic energy meter adopts exclusive LSI,the newest microelectronic technology and SMT technology to design and manufacture. It
has strong anti electromagnetic interference performance. With wide working
voltage range, High rel iabi l ity, Long l ife, high precision, low power consumption
etc.
The energy meter measures single phase AC active energy , the rated
frequency is 60Hz, use RS485 communication interface to communicate with PC.
Provide more convenient service to the electricity sector.
This energy meter can monitor the power network and electricity supply.
Power off, power on, voltage oversteps lower l imit, voltage oversteps upper l imit,
power oversteps l imit, send SMS to the administrator and server .
It is complying with the standard of IEC62053-21, IEC62052-11.
|
▷Features
● Measure and record energy consumption, record reverse energy by forward.
● Measure instantaneous active power, voltage, current, power factor.
●It has alarm function, Send SMS to administrator and server in time. Alarm
functions as below: Power off, power on, voltage oversteps lower l imit, voltage
oversteps upper l imit, power oversteps l imit etc.
|
